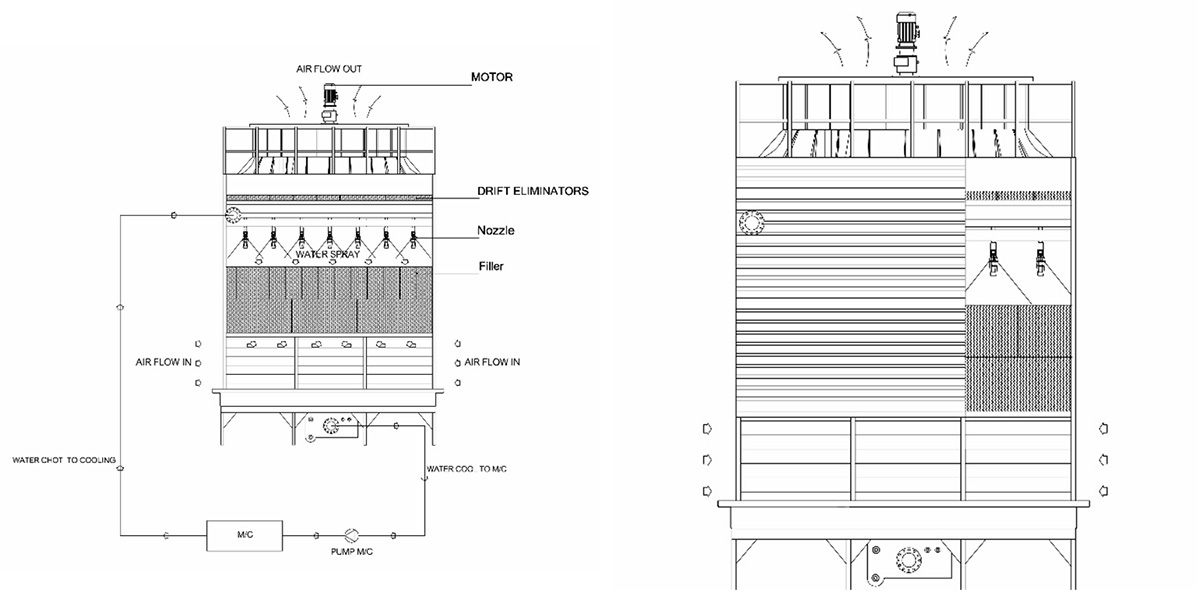

A Cooling Tower of this type operates on the counterflow principle, where air and water move in opposite directions to maximize heat transfer efficiency. It functions similarly to an induced draft counterflow cooling tower (Bottle Type) but with distinct design enhancements. Instead of a rotating sprinkler head, this system distributes hot water using precision-engineered water nozzles installed beneath water distributing pipes. These pipes are strategically positioned above the PVC filler layer, ensuring uniform water distribution across the entire filler cross-section. This design maximizes contact between the water and air, enhancing the cooling performance.
The cooling process begins with hot water flowing down from the water distribution system into the PVC filler, where heat exchange occurs. Simultaneously, ambient air is drawn from the bottom of the tower using an axial fan mounted on top of the cooling tower. As the air stream moves upward, it counteracts the downward-flowing water, facilitating an effective heat transfer process. The cooled water collects in a concrete water basin at the base of the tower before being recirculated for reuse in the system.
For durability and longevity, the cooling tower structure is constructed using either hot-dip galvanized steel or FRP (Fiber Reinforced Plastic) extruded profiles. FRP extruded profiles are particularly suitable for highly corrosive environments, offering superior resistance against chemical exposure and weathering. The tower body and fan stack are also manufactured from high-quality FRP, ensuring a lightweight yet robust design with excellent corrosion resistance.
This Cooling Tower model is ideal for large-scale industrial cooling applications where higher cooling capacity and greater water flow rates are required beyond the capabilities of standard cooling tower models. Since performance specifications vary based on operational needs, the design and manufacturing of this system are customized to meet customer-specific requirements.
For expert consultation on selecting the best Cooling Tower solution tailored to your needs, please feel free to contact us at This email address is being protected from spambots. You need JavaScript enabled to view it. for further details. Our team is ready to assist you with professional guidance and high-performance cooling solutions.
